How to Measure Plumbing Parts Before Ordering Online
Ordering plumbing parts online can be convenient.
But there's one frustrating problem:
The fitting arrives—and it doesn't fit.
Plumbing sizes can be confusing because the name used for a pipe or fitting doesn't always correspond to a simple measurement taken across the outside with a ruler.
That's why careful identification is just as important as measurement.
1. Don't Guess From a Photo
Two fittings can look almost identical on a screen and still be different.
Before ordering, identify:
- What the component does
- Pipe or tubing material
- Connection type
- Nominal or specified size
- Manufacturer information when available
2. Understand Nominal Sizing
Plumbing often uses nominal sizing conventions.
That means the stated pipe size may not simply equal the outside diameter you measure.
Use appropriate sizing references for the particular pipe system rather than assuming your ruler measurement is the product size.

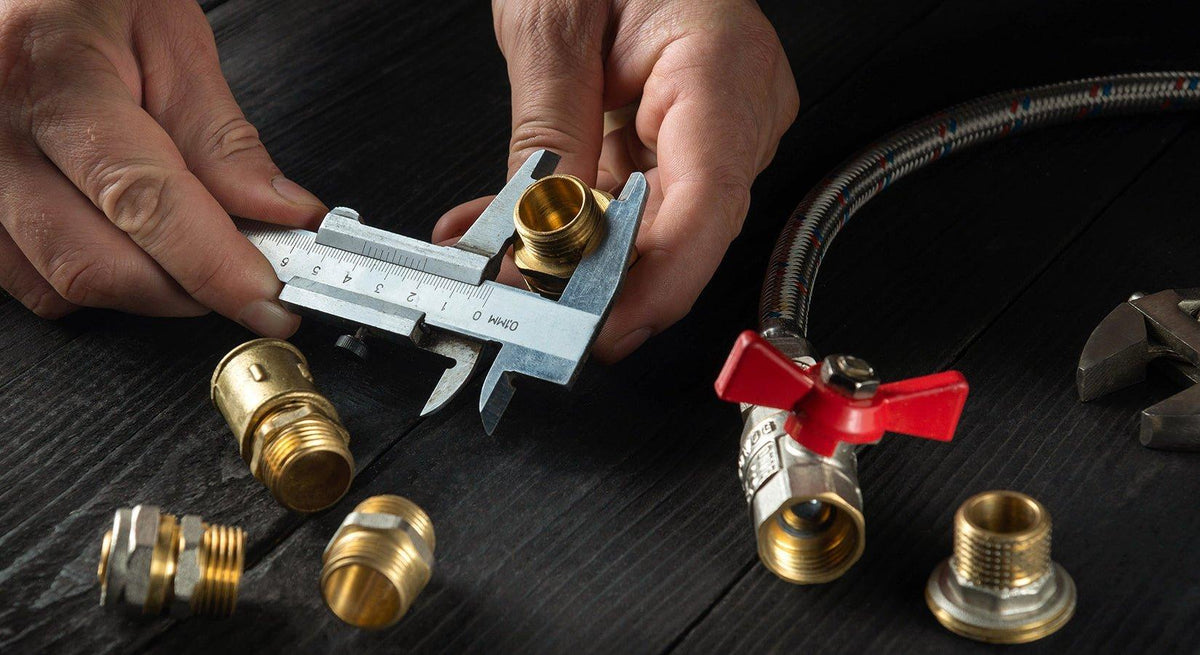

3. Measure the Existing Component Carefully
Depending on the part, relevant measurements may include:
- Outside diameter
- Inside diameter where appropriate
- Thread dimensions
- Length
- Hole spacing
- Connection spacing
The correct measurement depends on what you're replacing.
4. Identify Male and Female Threads
For threaded plumbing components, determine how the parts connect.
Don't assume two components are compatible merely because their diameters look similar.
Thread standards and connection designs matter.
5. Check Both Sides of Adapters and Valves
An adapter or valve can have different connections at each end.
Record both.
For example:
Side A: existing pipe connection
Side B: fixture or supply connection
This simple habit can prevent many ordering mistakes.
6. Take Photos
Before removing an existing component, photograph:
- Overall installation
- Connections
- Labels
- Markings
- Part numbers
Photos can provide valuable reference information later.
7. Read the Full Product Specifications
Don't purchase from the product title alone.
Look for:
✔ Dimensions
✔ Material
✔ Connection type
✔ Intended application
✔ Compatibility information
✔ Pressure or temperature ratings where relevant
✔ Manufacturer instructions
8. Don't Force a Part That Doesn't Fit
If a new fitting doesn't connect properly, stop.
Don't use excessive force to make incompatible plumbing components work together.
Recheck the size and connection specifications.
Smart Ordering Checklist
Before placing your order:
✔ Identify the existing material
✔ Determine the required size
✔ Check connection types
✔ Measure relevant dimensions
✔ Photograph the old component
✔ Look for model or part numbers
✔ Read product specifications
✔ Verify compatibility
Final Thoughts
Online plumbing shopping becomes much easier when you stop asking:
“Does this look right?”
and start asking:
“Do the specifications match?”
Measure carefully.
Identify the system.
Check both connections.
Read the specifications.
A few extra minutes before ordering can save you from the wrong part, a delayed repair, and another order.
